Low temperature temperature control heat tracing cable

Low temperature temperature controlled heat tracing cables (self limiting electric heating strips) are widely used in civil solar and geothermal heating, as well as for heat tracing insulation, anti condensation, and anti freezing of pipelines and storage tanks in industrial enterprises such as fire protection, petroleum, chemical, steel, and power. This cable is suitable for general areas, hazardous areas, and corrosive areas.

Low temperature temperature controlled heat tracing cables (self limiting electric heating strips) are widely used in civil solar and geothermal heating, as well as for heat tracing insulation, anti condensation, and anti freezing of pipelines and storage tanks in industrial enterprises such as fire protection, petroleum, chemical, steel, and power. This cable is suitable for general areas, hazardous areas, and corrosive areas.

Product model: DWL (DXW, DKW, ZKWD, DBW) corresponds to the foreign model BTV series

Temperature level: Low temperature (D) series

Structural types: basic type (J), basic anti-corrosion type (J2), shielded explosion-proof type (P), shielded anti-corrosion type (P2), explosion-proof protection type (PF), explosion-proof anti-corrosion type (PF2)

Voltage levels: 12V, 24V, 36V, 110V, 220V, 380V

Nominal power: 10W/m, 15W/m, 20W/m, 25W/m, 30W/m

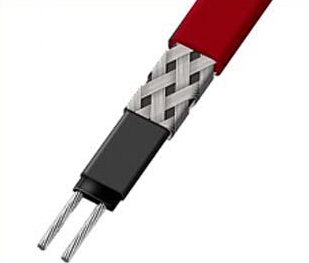

Cable structure:

1. Copper core wires: 7 x 0.32, 7 x 0.42, 7 x 0.50, 19 x 0.32

2. Conductive plastic layer: ordinary PTC, flame-retardant PTC, fluorine-containing PTC

3. Insulation layer: modified polyolefin, flame retardant polyolefin, fluorinated polyolefin, perfluorinated material

4. Shielding layer: Tinned soft round copper wire, covering a density of 80%

5. Sheath layer: modified polyolefin, flame retardant polyolefin, fluorinated polyolefin, perfluorinated material.
