Intelligent traffic integrator

1、 Functional characteristics of intelligent flow totalizer Full range automatic temperature and pressure compensation calculation, with any compensation method set Linear integration and square root integration can be set arbitrarily

1、 Functional characteristics of intelligent flow totalizer

● Full range automatic temperature and pressure compensation calculation, with any compensation method set

Linear integration and square root integration can be set arbitrarily

Display of various parameters such as instantaneous flow rate, cumulative flow rate, temperature, and pressure

Small signal cut-off function, with a cut-off range of 0-5% optional

The accumulated flow value can be reset by pressing the panel button, and the reset operation can be locked

● Power failure protection function, with accumulated flow value and power failure retention time greater than 5 years, all set values will be maintained for a long time after power failure

Modular structure, combined with powerful instrument chips, makes function combination and system upgrade very convenient

2、 Main technical indicators of intelligent traffic integrator

Basic error: 0.5% FS or 0.2% FS ± 1 word

Resolution: 1/20000, 14 bit A/D converter

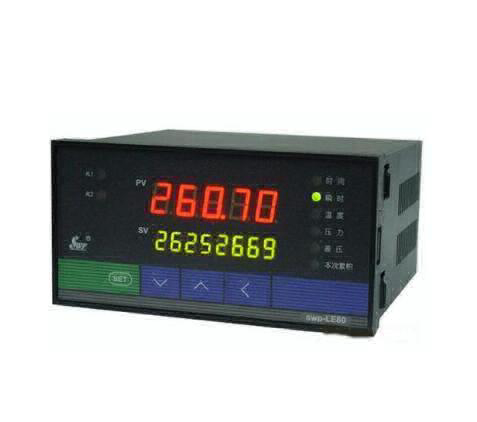

Display method: dual row simultaneous display, upper row four digit digital tubes display instantaneous flow rate, lower row eight digit digital tubes display cumulative flow rate Sampling period: 0.5S

Alarm output: Instantaneous flow second limit alarm, relay output contact capacity AC220V/3A

Transmission output: 4-20mA, 0-10mA, 1-5V, 0-5V accuracy: ± 0.3% FS

Communication output: Interface method - Isolation serial bidirectional communication interface RS485/RS422/RS232/Modem

Baud rate -300~9600bps internal free setting

Feed output: DC24V/50mA

Power supply: Switching power supply 85-265VAC, power consumption below 4W
