Furnace wall thermocouple

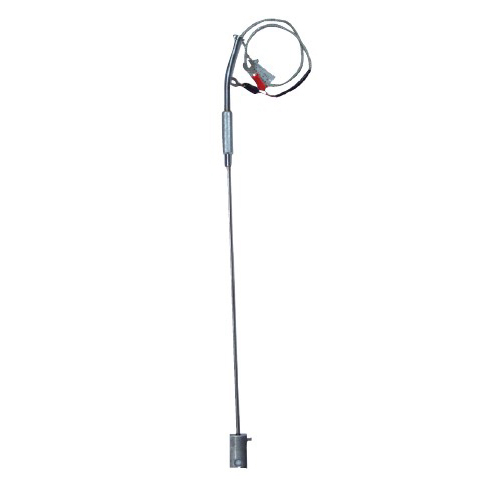

The furnace wall thermocouple uses armored thermocouple components with a diameter of 4 or 5 as the temperature measurement probe. The measurement end is tightly attached to the surface of the thermal conductivity plate by means of screws, clamps, or welding (welding is not suitable when using thermal resistance components).

application

The furnace wall thermocouple uses armored thermocouple components with a diameter of 4 or 5 as the temperature measurement probe. The measurement end is tightly attached to the surface of the thermal conductivity plate by means of screws, clamps, or welding (welding is not suitable when using thermal resistance components). The other side of the thermal conductivity plate has the same curved surface as the measured surface. The temperature of the furnace wall or pipe wall can be measured by welding the thermal conductivity plate or clamps tightly attached to the measured furnace wall. Furnace wall thermocouples are suitable for temperature measurement of boiler walls, tube walls, and other cylindrical surfaces in power plants.

Main technical parameters

◆ Accuracy level: I, II

◆ nominal pressure: atmospheric pressure

Bending radius: R ≥ 5D
